3614-SXXX-104XXR0X

Board To Board Connector,Socket,Vertical,Surface Mount,Dual Row,10.40mm Height, Gold plating,With Post,With reinforcing metal fitting,Black

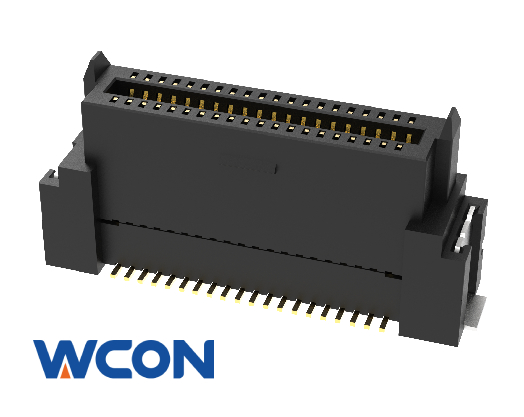

/assets/upload/2023-12-26/3614-SXXX-104XXX01.jpg
Rated Voltage 50 V/AC,V/DC Operation Temperature -40°C - +105°C
Rated Current 0.5 AMP Contact Material Copper Alloy
Contact Resistance 60 m? Max Insulator Material Thermoplastic Plastics
Insulation Resistance 1000 M? Min Contact Plating Au
Withstand Voltage 250 V/AC,V/DC Packaging Reel,Tube

ROHS

Compliant

REACH

Compliant

  • Description
    Part Number
  • Board To Board Connector,Plug,Vertical,Surface Mount,Dual Row,8.00mm Height,Gold plating
  • Board To Board Connector,Plug,Vertical,Surface Mount,Dual Row,11.00mm Height,Gold plating
  • Board To Board Connector,Plug,Vertical,Surface Mount,Dual Row,12.00mm Height,Gold plating
  • Board To Board Connector,Plug,Vertical,Surface Mount,Dual Row,13.00mm Height,Gold plating
  • Board To Board Connector,Plug,Vertical,Surface Mount,Dual Row,14.00mm Height,Gold plating
